Features

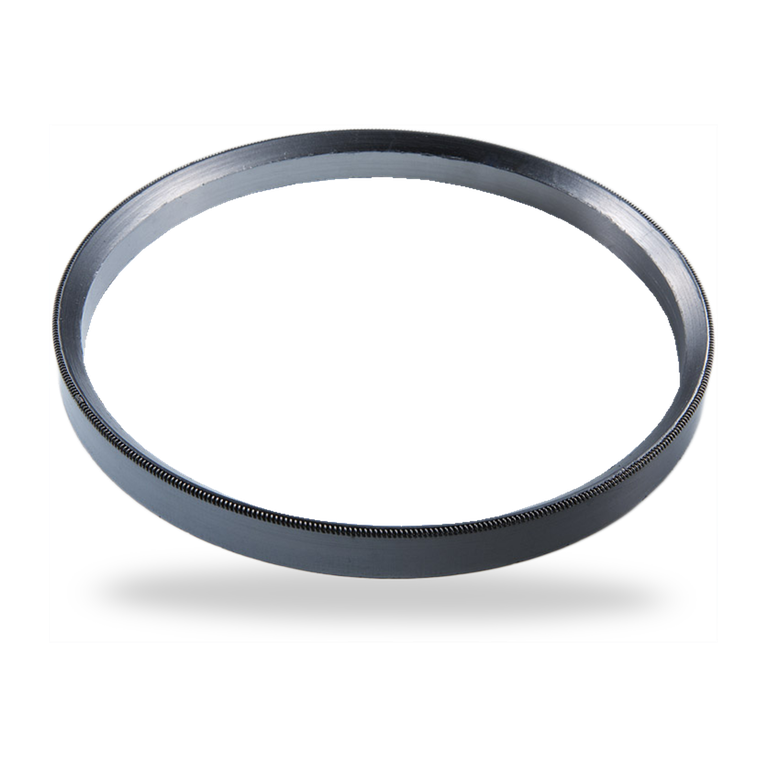

Statotherm V cover seals V901 (self-sealing) are precision-made seals made from permanently elastic, expanded graphite (purity ≥ 99%) without binders or fillers. Cover seals are successfully used as self-sealing closures in high pressure valves, e.g. for power stations at high temperatures and up to 1,000 mm diameter.

Advantages

  • Easy to assemble and disassemble
  • No damage to the sealing surfaces
  • Long service life
  • Do not harden
  • Optimized sealing result
  • Minimum wear of the contact surface

Operating range

Pressure: p = 500 bar
Sliding velocity: vg = 2 m/s
Temperature
  • Continuous operation:
    t = -200 °C … +500 °C
  • Steam: tmax+550°
Recommended surface roughness:
RZ = 10 - 40 μm
Chemical resistance: pH = 0 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents.

Density (raw material): 0.7 or 1.0 g/cm3
V901/B5: density 1.3 g/cm3
V901/B6: density 1.4 g/cm3
V901/B7: density 1.6 g/cm3
V901/B8: density 1.8 g/cm3

Variants

Rectangular profile (without, or with one or with two end caps):
V901/R7, V901R7K, V901RKK, V901RWK

Outer chamfer (without, with one or with two caps):
V901/A7, V901A7K, V901AKK

Inner chamfer (without, with one or with two caps):
V901/I7, V901I7K, V901I
For applications in nuclear power plants, with a graphite purity > 99,85%:
V901/7N

Notes

Design and ordering information
The design of the cover seal depends on the pressure and dimensions. Please specify the operating conditions and profile shape with any enquiries or orders (example: pressure in bar, diameter d1 and d2, profile shape I, A or R).

Forms of supply

  • Die-pressed rings, to drawing, measurements or other agreement
